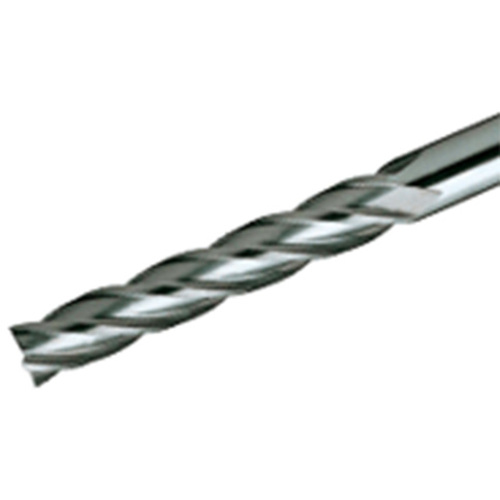

TEC060A4-50C06-E150 AH725
4 flute endmill, 30 deg helix angle, extra long neck type

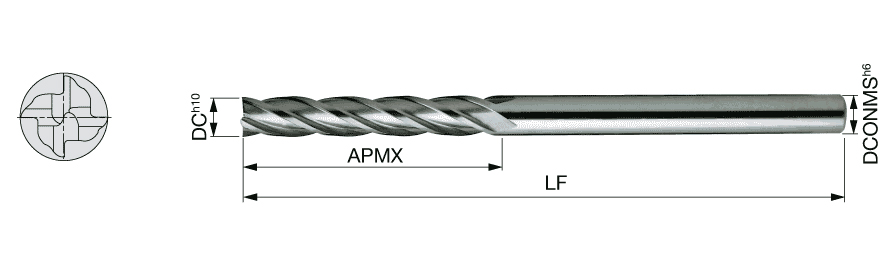

| Cutting Diameter (DC) | 6 mm | Shank Type | Round |
| Connection Diameter Machine Side (DCONMS) | 6 mm | End Shape | Square |
| Depth of Cut Maximum (APMX) | 50 mm | Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Aluminum / Non-Ferrous Materials | Super-Alloys / Titanium | |
| Overall Length (OAL) | 150 mm | Application | | Shoulder Milling | |
| Cutting Edge Material | Carbide | Grade | AH725 |
| Coating | TiAlN | Body Material | Carbide |
| Flute Count (NOF) | 4 | Measurement Type | Metric |
Product Features
| Family Description | 4 flute endmill, 30 deg helix angle, extra long neck type | Country of Origin | ISRAEL |
Shipping Info
Package Weight
0.137
