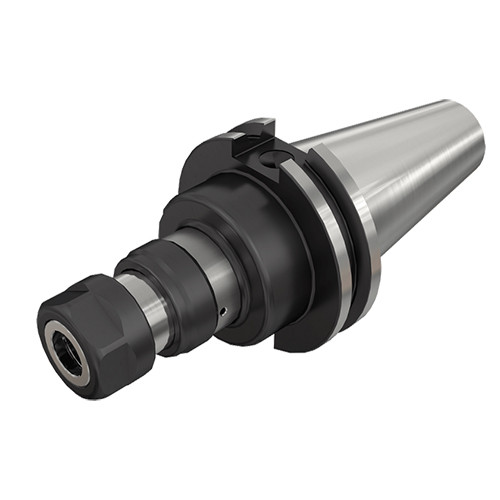

GTI CAT50 ER40
DIN 6499 ER tapping attachment with Caterpillar tapered shank.

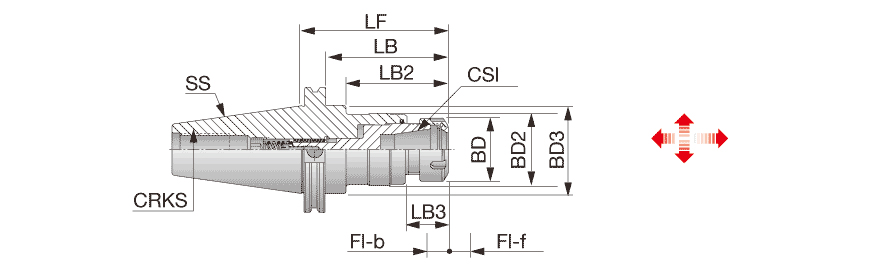

| Shank Size (SS) | CAT50 | Functional Length (LF) | 5.252″ |
| Connection Size (CSI) | ER40 | Application | | Tapered shape interface | |
| Body Diameter (BD) | 2.48″ | Tool Type | Caterpillar |
| Body Diameter_3 (BD_3) | 2.752″ | Tap Max | 1-1/8 |
| Body Length (LB) | 4.502″ | Tap Min | 1/4 |
| Body Length_2 (LB_2) | 3.872″ | Measurement Type | Inch |
| Shank Length (LS) | 4″ | Body Material | Steel |
Product Features
| Family Description | DIN 6499 ER tapping attachment with Caterpillar tapered shank. | Country of Origin | ISRAEL |
Shipping Info
Package Weight
0.000
Related Documentation
[Operation] @For through- and blind-hole tapping: @(1) Enter feed rate according to thread pitch (or 1-2 % lower). Set spindle to starting point with 0.08 mm clearance. @(2) Start spindle forward with right hand rotation until reaching desired depth. @(3) Stop feed and rotation and reverse to starting point.
